Main Features :

1. 10W Laser Beam Shaping Technology: Adopting the latest 10W laser beam shaping technology diode laser, the S9 Pro has an ultra-fine 0.06mm laser focus. With super cutting penetration and precision, it can cut up to 15mm thick wood, 10mm acrylic, and directly engrave ceramics and 304 stainless steel.

2. Fast Focusing Design: The S9 Pro laser has the fastest focus design. It combines a fixed focus lens and a sliding design, allowing you to slide the laser and tighten the screws to easily complete the focus. This makes it very easy to use the laser.

3. Solid and Easy-assembly Structure Design: Full-metal structure design enhances the solidity of the machine, significantly improving the accuracy of engraving. The whole structure is designed for easy-assembly, which can be completed in 10-20 minutes.

4. New Eye Protection Design: 98% of ultraviolet light can be filtered out by the laser filter cover. You and the people around you can watch the laser engraving without wearing goggles. At the same time, it can prevent animals from catching the laser spot.

5. Wide Compatibility: The SCULPFUN S9 Pro is compatible with various mature engraving software, such as LaserGRBL, LightBurn. It supports PWM mode engraving, Windows system, and MAC system (LightBurn). The engraving file format like JPG, PNG, DXF, SVG, AI, G-code, NC, BMP, etc. are supported.

6. Safe Design: The machine is equipped with a very convenient power switch, which is not available in others. Fixing holes are reserved on the four foot supports and the body structure to facilitate the fixing of the machine and the data cable.

7. A4 Steel Pad: The free A4 size steel pad can protect the table from laser damage and isolate fire hazards.

8. Square Measuring Ruler: X-axis and Y-axis contain precise scale lines, which is convenient for you to measure the size of engraving objects quickly. The 400x410mm large engraving area can meet your various engraving needs.

Product Information:

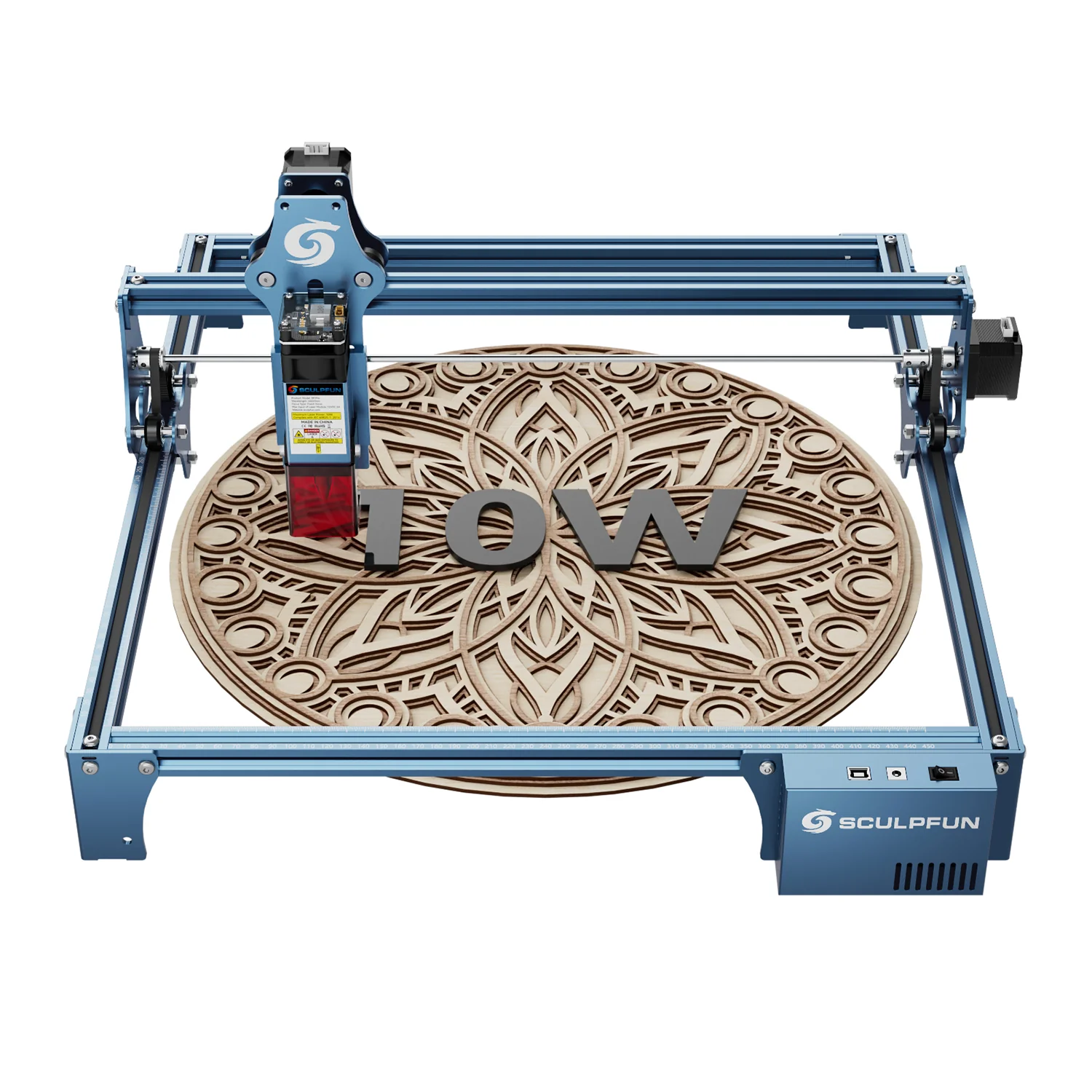

Product model: SCULPFUN S9 Pro
Engraving size: 400*410mm
Engraving materials: wood, paper, cardboard, PCB board, aluminum oxide, 304 Stainless steel, ceramic，dark stone
Cutting materials: wood, black acrylic, cardboard, fabric, bamboo
Diode laser power: 10W
Laser wave length: 450±5nm
Engraving accuracy: 0.01mm
Focusing method: fixed focus laser + sliding device
Laser protective cover: The light filter cover on the laser protects the user's eyes and prevents animals grabing the laser spot.
Operating software: LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.
Data transmission method: USB connection
Power supply: International universal standard power input: 100-240V AC, 50/60HZ output: 12V 5A
Equipment net weight: 3.0kg
Package weight: 4.77kg
Packing size: 625*360*135mm

Packing List:

1× X axis assembly; 2× X shaft; 2× Y shaft; 1× Control box module set; 3× Support feet
1× Laser module set; 1× 12V 5A power adapter; 1× Power cord; 1× USB cable
Step 1~5 Screw installation package; 2× Belt; 1× T-shaped M5 screwdriver; 1× L-shaped M4 screwdriver; 1× L-shaped M3 screwdriver; 10× Tie; 1× 8-10mm nut wrench; 1× Brush
1× Laser goggles; 2× 3mm thickness 10x10cm wood board; 1× A4 size steel desktop protection pad
