Pls pay attention: this kit is suited to S10 and S30 series, if want to expand s30 ultra series machines, need to buy an adapter cable, click to check.

Main Features：

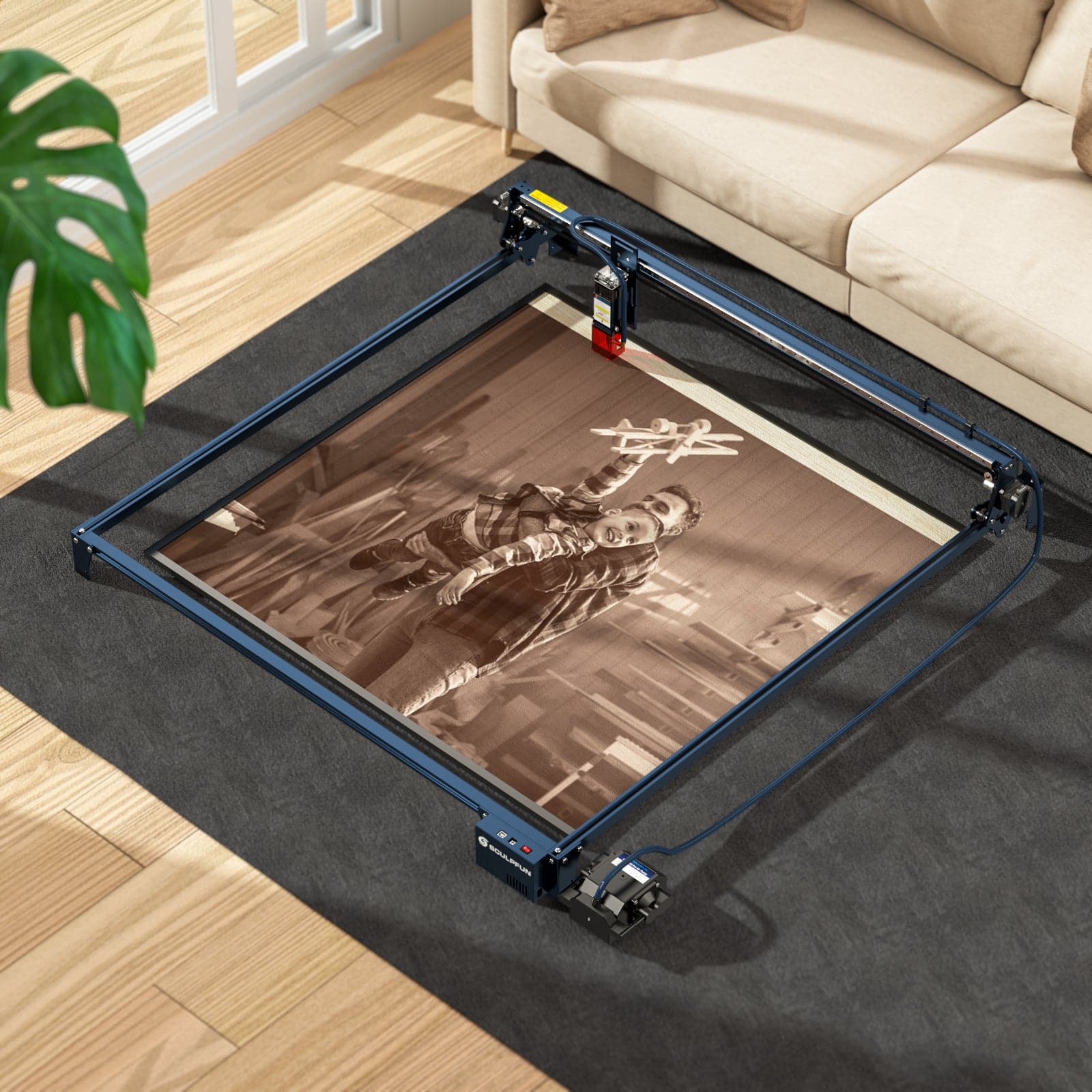

1. Fast to get more than 5 times the huge engraving area: By replacing the frame beam of the S10/S30 series, it can quickly obtain a huge engraving area of 900x920mm, which is 516% of the standard S10/S30 5W/ S30 Pro 10W. Engraving area is 890x900mm if machine is S30 Pro max. It can be applied to S10 /S30/S30 Pro/S30 Pro Max.

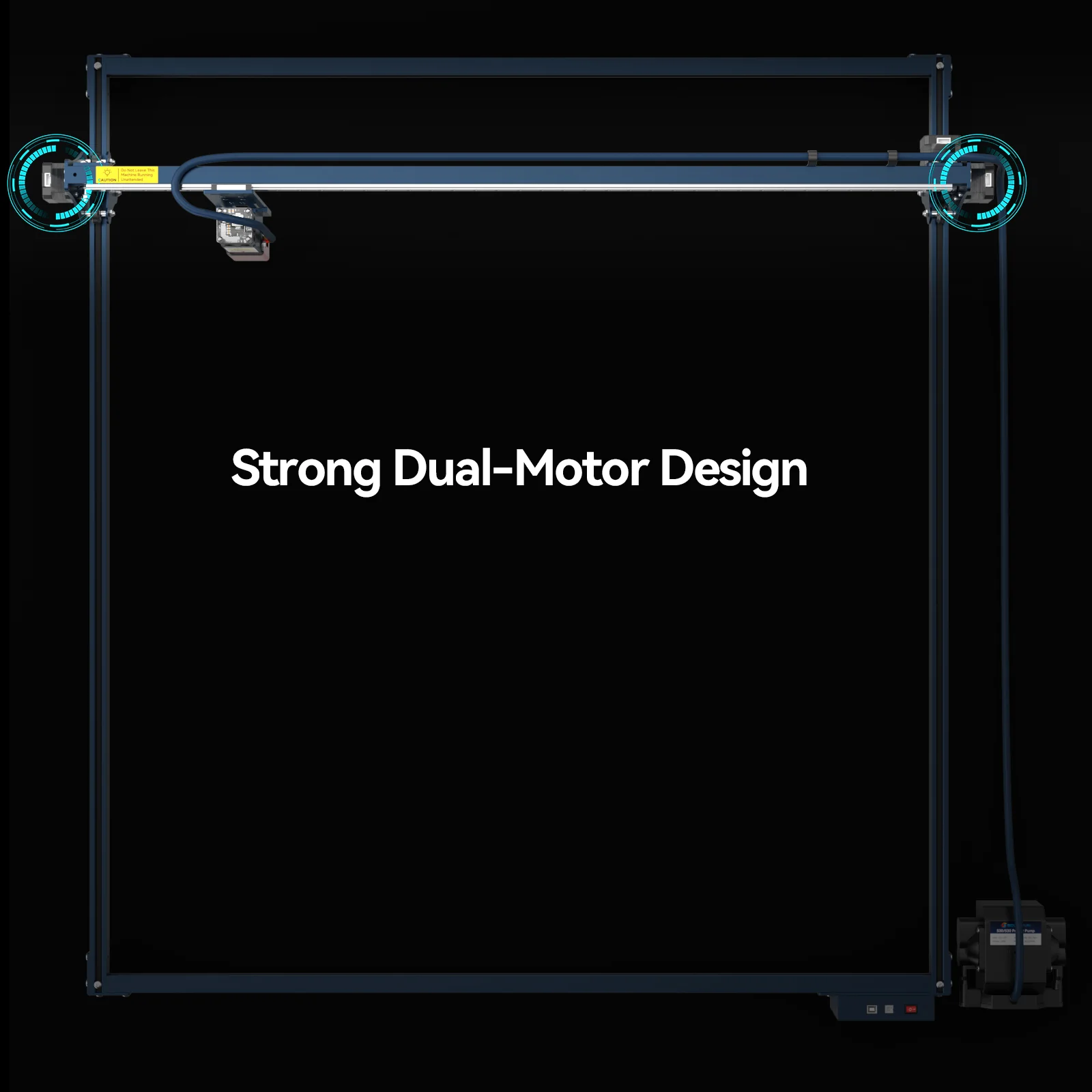

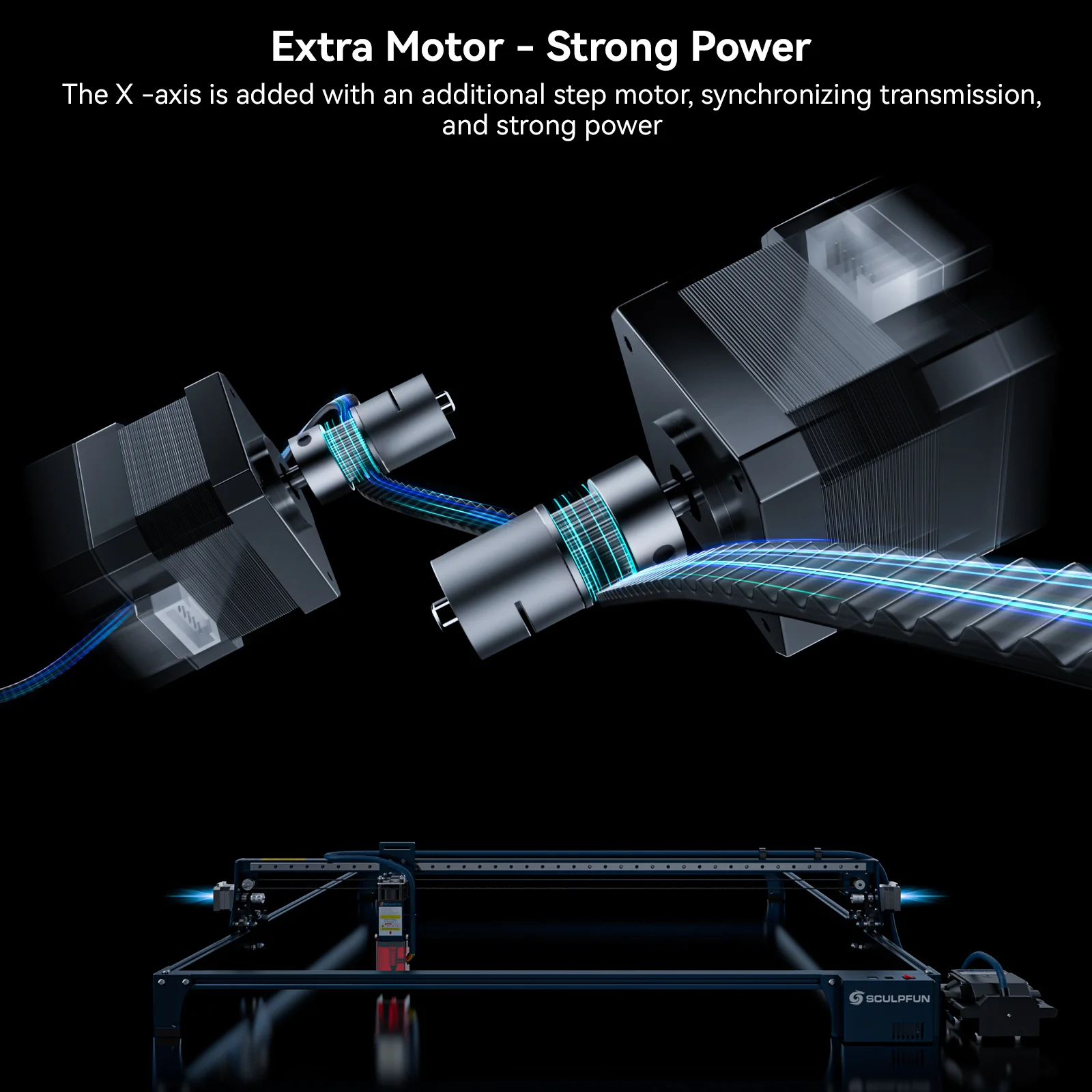

2. Strong dual-motor design: SCULPFUN XY-axis expansion kit adopts a dual-motor design, which can easily drive the heavy X-axis, and keep strength and accuracy during movement.

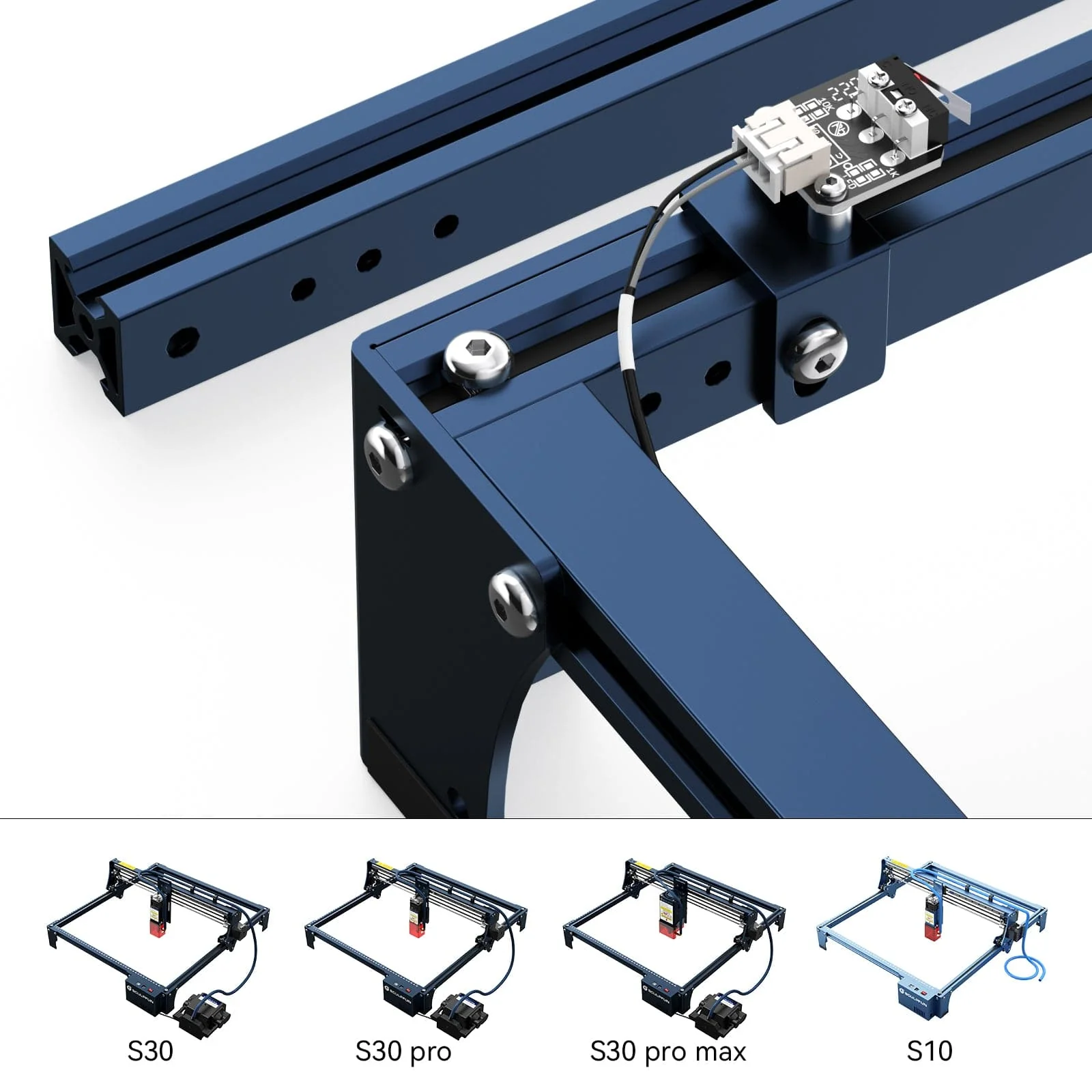

3. Reserved holes for limit switches: Limit switch holes are reserved on the extended Y-axis of S10/S30/S30Pro, and the limit switch function can still be used.

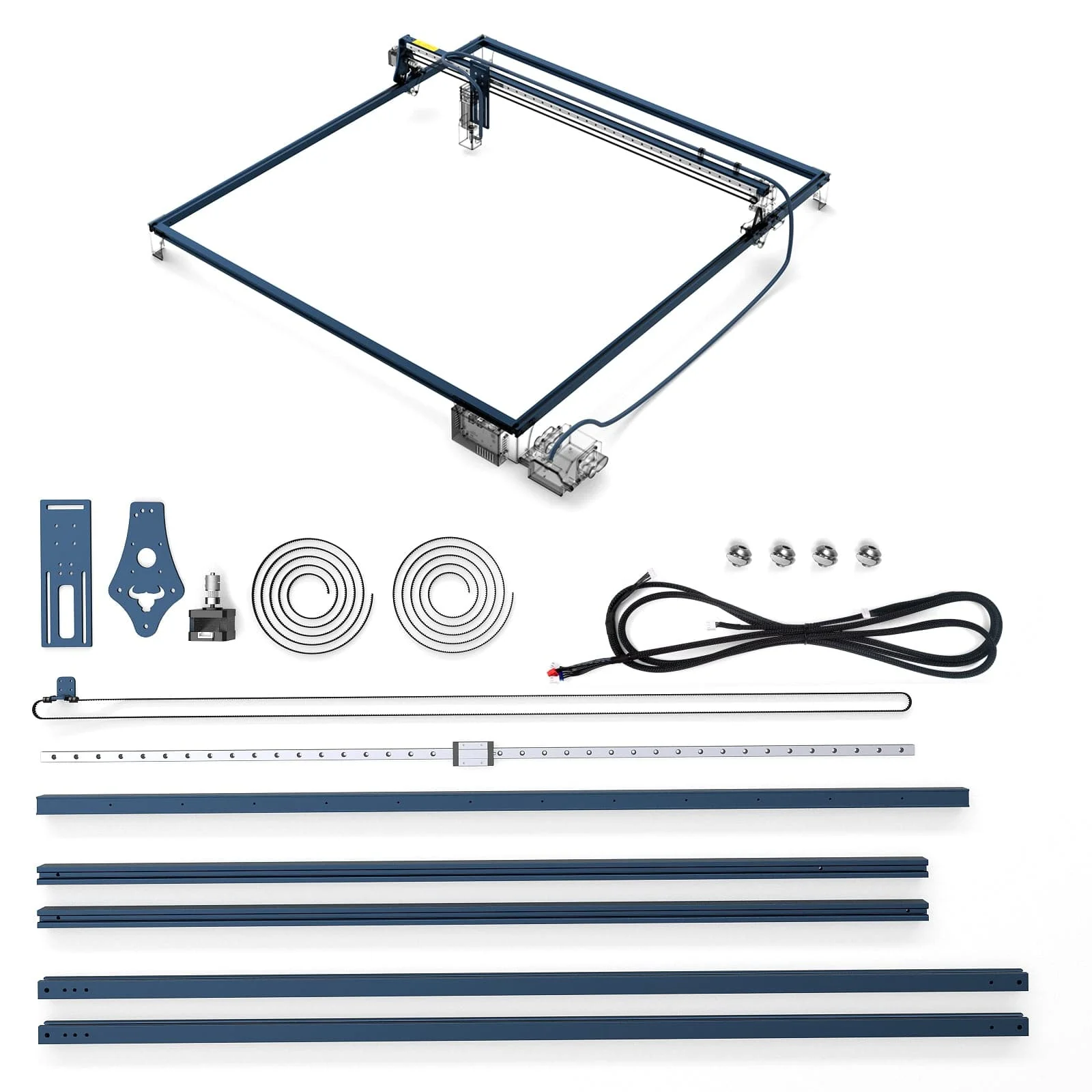

4. Complete accessories for direct use: The product list includes all other necessary accessories for expanding the area, including motors, motor fixing plates, laser fixing plates, extension cables, belts, and screws. No need to buy any extra accessories.

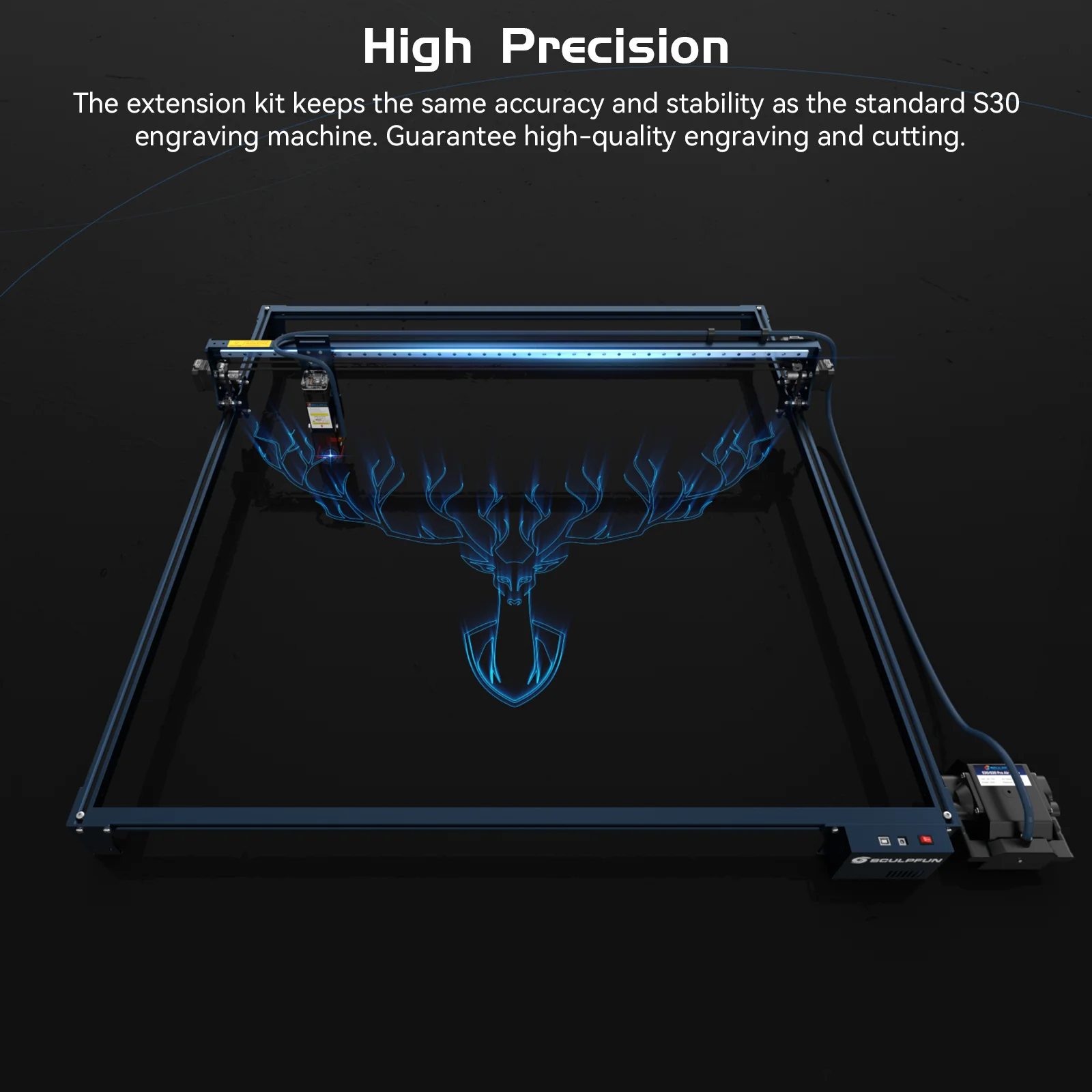

5. High-precision machining and testing: The extension shaft and cable have undergone rigorous testing so that it maintains the same precision and stability as standard S10/S30 series engraving machines. Guaranteed high-quality engraving and cutting.

6. Product model: SCULPFUN S10/S30/S30 Pro/S30 Pro Max engraving area expansion Kit
Function: Extend SCULPFUN S10/S30/S30 Pro engraving size to 920x900mm; Extend SCULPFUN S30 Pro max to 890x900mm.
