Main Features :

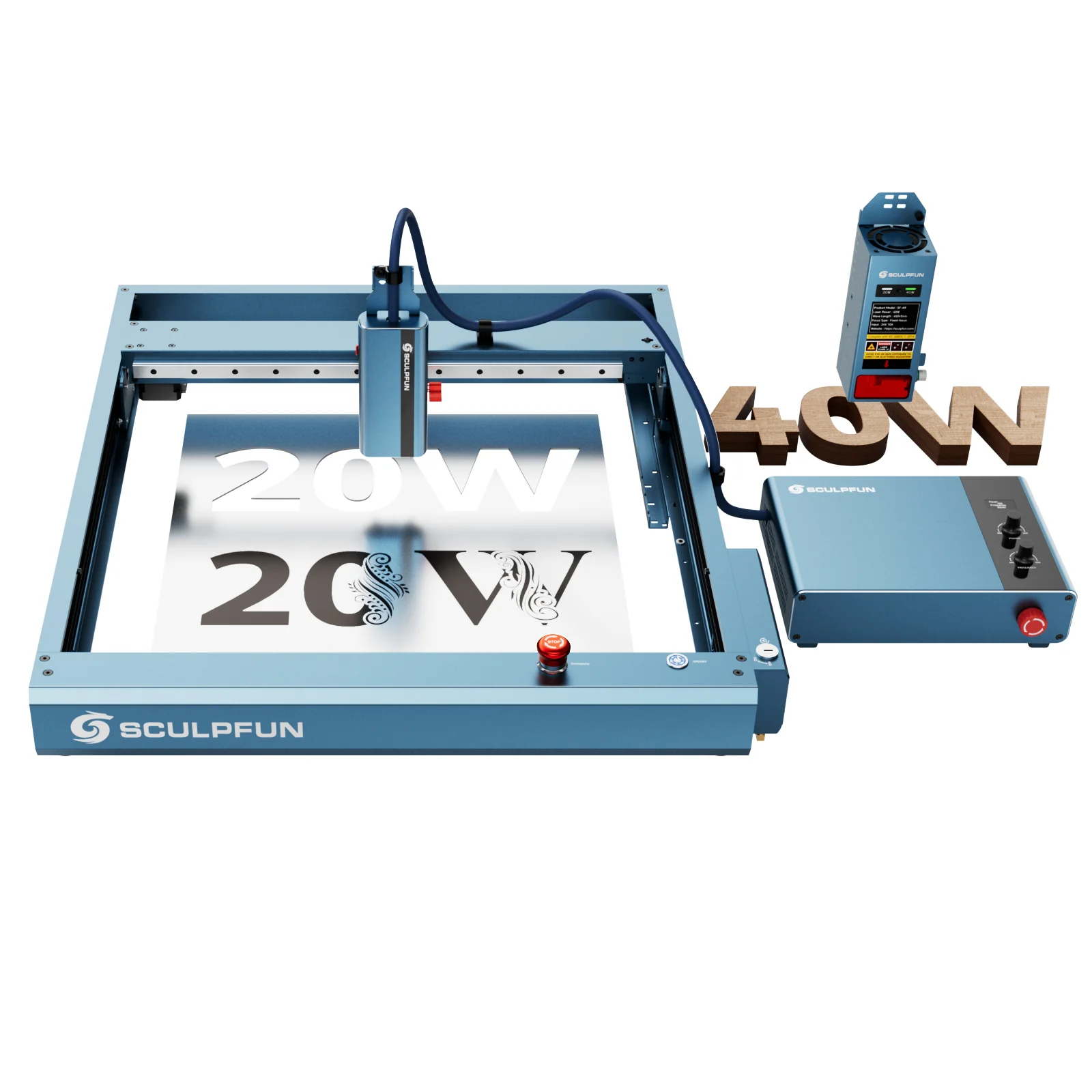

1. Dual Laser Module
The SF-A9 Ultra features a switchable 20/40W diode laser and a 20W infrared fiber laser, with dual laser light sources for a wider range of materials. The diode laser is ideal for engraving and cutting most commonly used materials, while the infrared fiber laser is suitable for working with metals and plastics, as well as for tasks such as rust removal and dyeing.

2. 20/40W Diode Laser Module
A unique switchable power that  allows for quick power switching between 40W and 20W via the front lever, offering a balance between power and beam precision to meet various processing needs. Equipped with a heat pipe radiator for faster and more even heat dissipation.

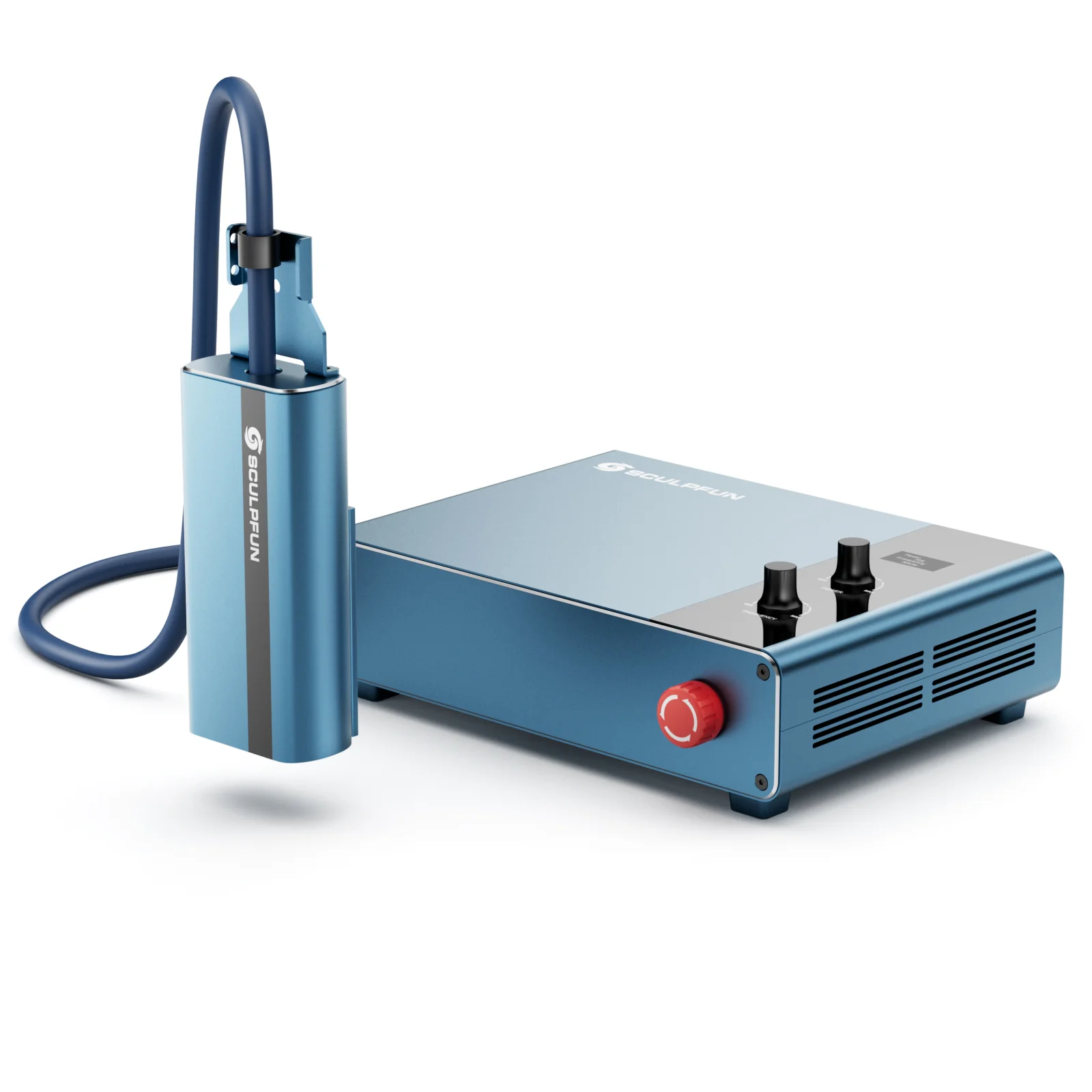

3. 20W Infrared Fiber Laser
The 20W infrared fiber laser is suitable for working with metal, plastic, acrylic, leather, ceramic, stone, and more. Focusing is done via an external controller, with dual knobs for adjusting laser power and frequency.

4. Precise Focusing Design
Designed with a highly accurate focusing system. The diode laser module includes a focus lever on the laser head that is stable for more accurate focusing position. The infrared laser uses focusing laser beam, simply press the knob to align the focus beam with the machine laser to complete focusing. With the focus positioning structure and Z-axis manual adjustment, it is more convenient to use. The red knob on the right side of the laser is to raise or lower the laser module for the quick height positioning, and the top knob provides fine-tuning with 1mm adjustment per full turn. Just slide the positioning switch to set the height quickly, then manually adjust to achieve precise focus fine-tuning.

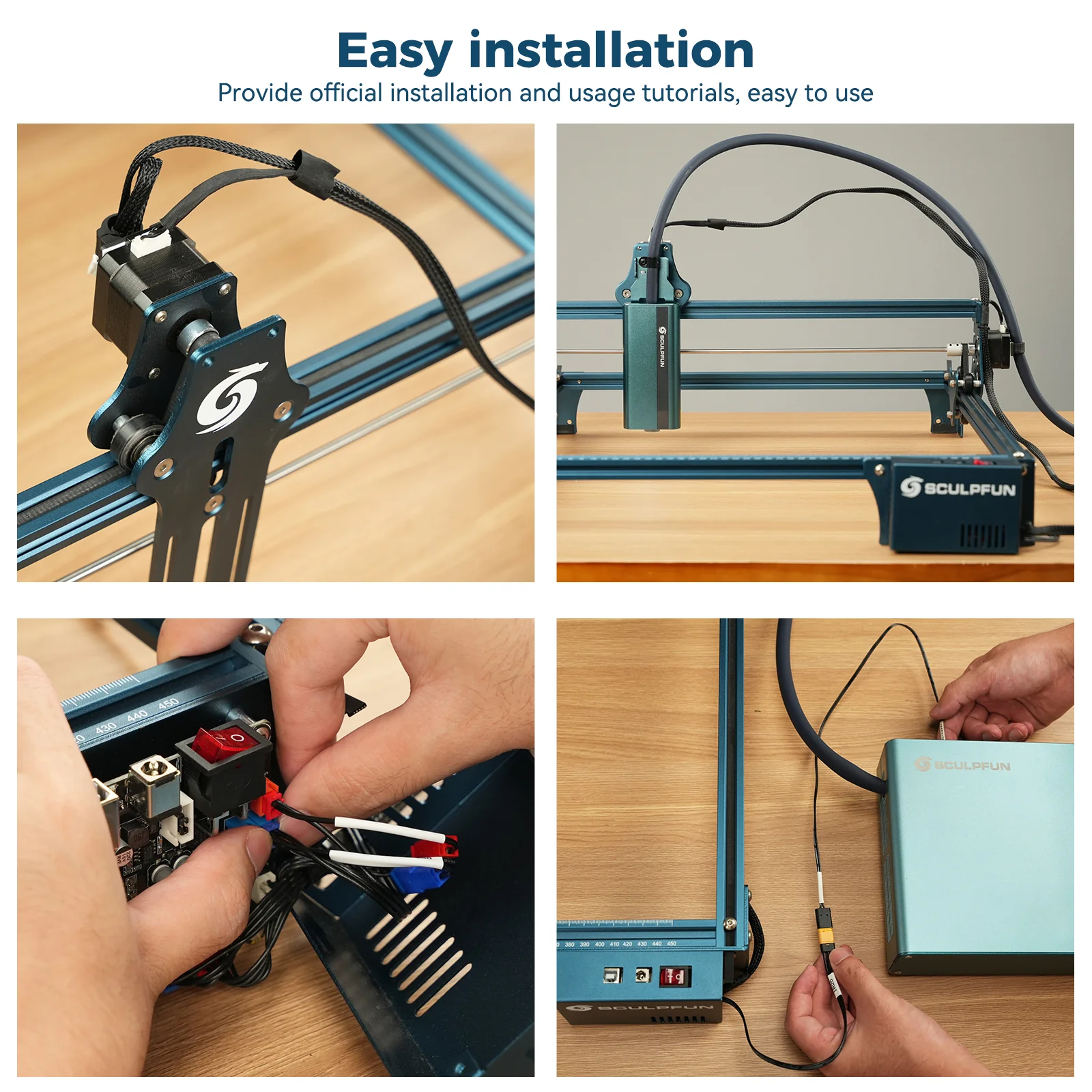

5. Sturdy and Easy Installation

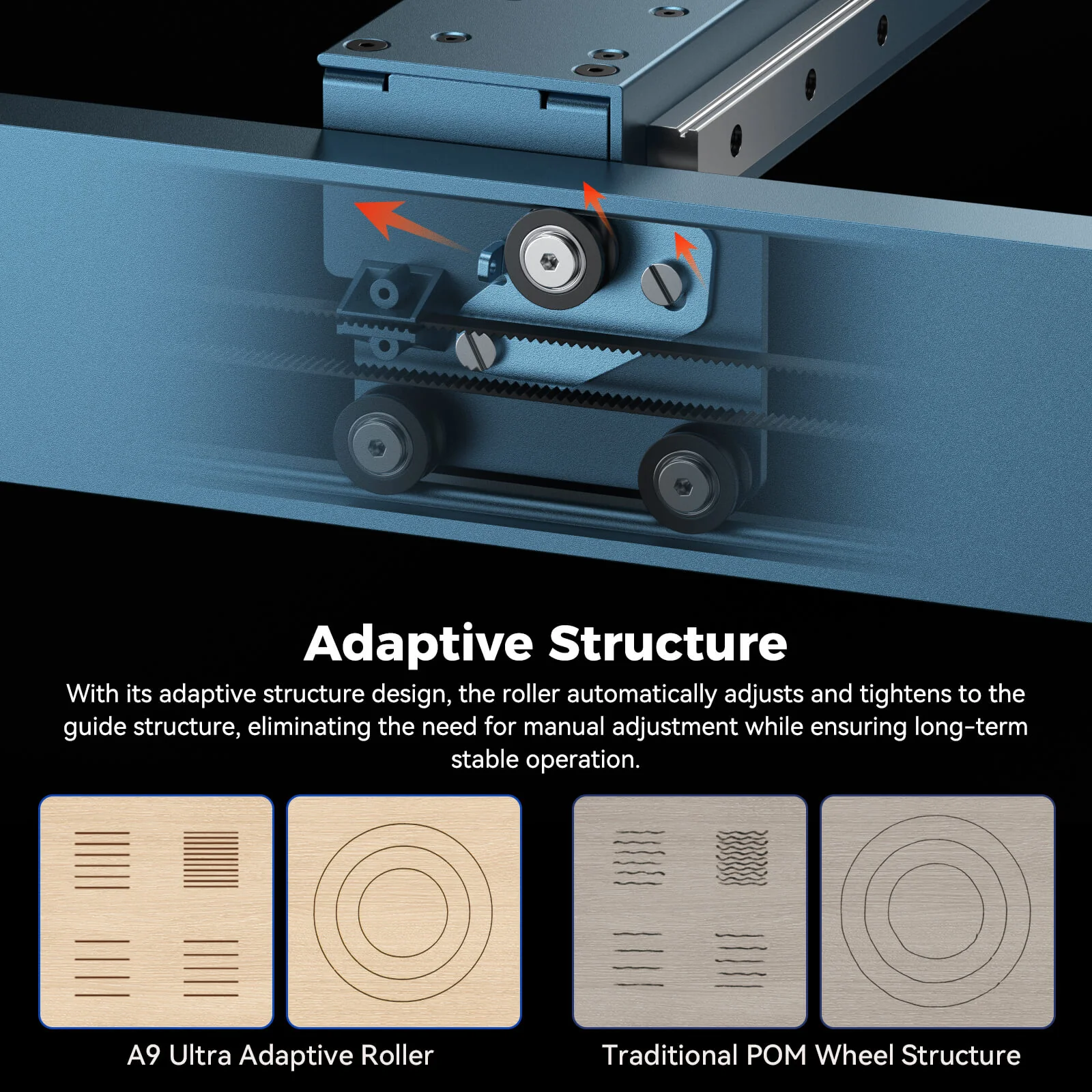

Full metal structure design makes the machine robust. The X-axis features an industrial-grade linear guide rail for enhanced engraving precision, with a motion accuracy of 0.01mm. Y-axis utilizes adaptive wheels that eliminates manual adjustment of the distance between the rollers and the guide structure, providing a more smooth motion. It is easy to install and user-friendly.

6. Safety Protection Features
The machine is equipped with both a button switch and a key switch, while the fiber laser includes a rocker switch. Dual emergency stop switches ensure safety in urgent situations. It also equipped with a flame sensor, a temperature sensor, and a a tilt sensor. When it detects the flames during the working process, the flame and temperature sensors will be triggered and the machine will stop working with an alarm while automatically moves to the safest location. Additionally, t will set off an alarm and stop emitting the laser light while the machine body is off-balance and tilts over 15°.

7. Automatic Air Assist
Upgraded large inner diameter air hose with a better air channel design that can present a more cleaner cutting result and improve the service life of the laser lens.

8. Adjustable Machine Height
The Sculpfun A9 Ultra comes with the additional machine risers that can adjust the height of the machine to facilitate the engraving of higher objects, meeting a variety of working needs.

Model: A9 Ultra
Product Dimensions: 606*665*110mm
Engraving Area: 400*400mm
Laser Power: Diode 20/40W, Infrared Fiber 20W
Laser Spot: Diode: Adjustable 0.1mm/0.15mm, Infrared: 0.05mm
Operating Speed: Maximum 36000mm/min
Operating Voltage: DC 24V
Operating Current: 10A
Packaging Weight: 14.6KG
Packing Size: 715×665×150mm
Outer Carton Dimensions: 715×665×150mm
Carton Quantity: 1 pcs

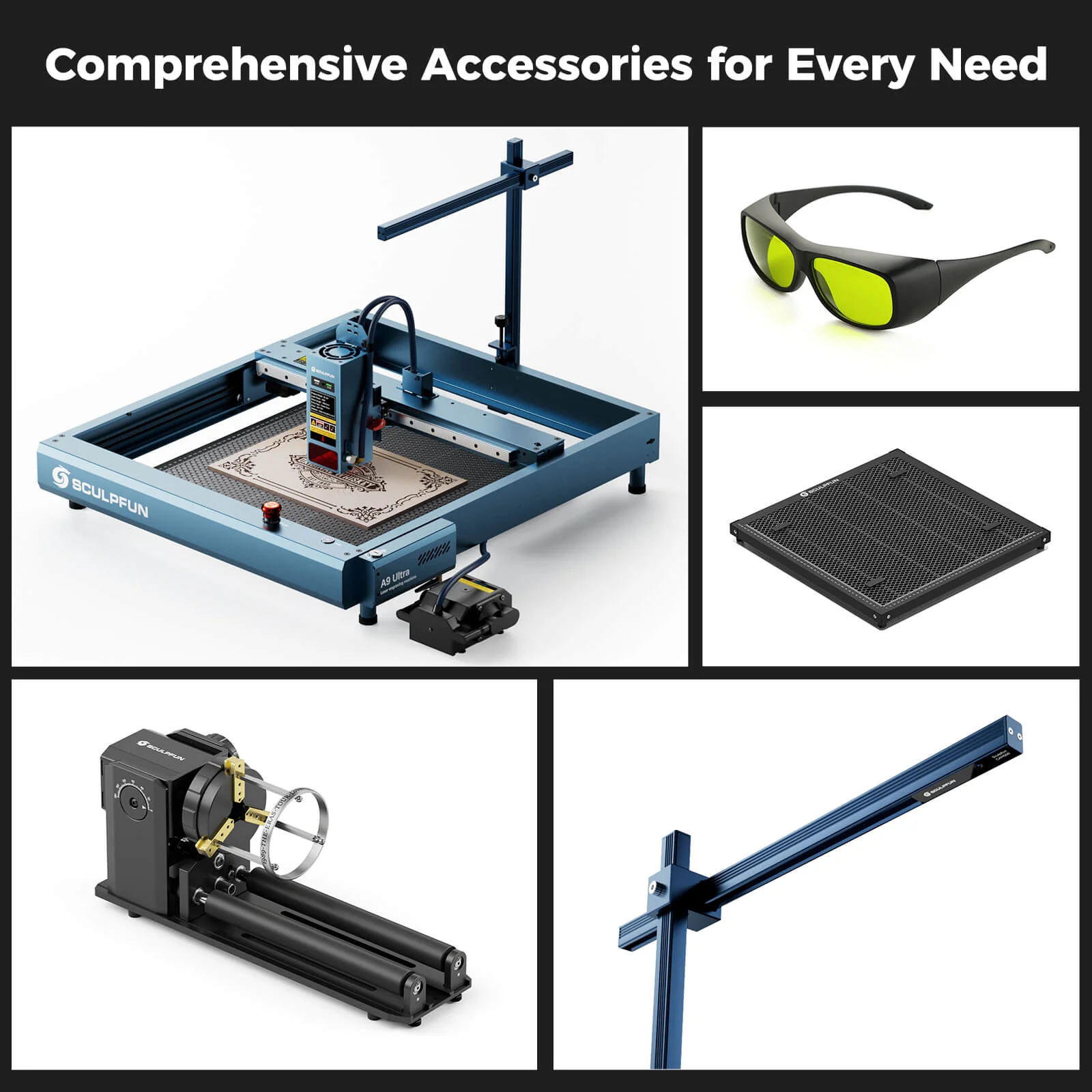

Packing List:
1 *A9 Ultra Machine
1 *A9 Ultra Laser Module
1 *Adapter
2 *Power Cable
4 *Machine Risers
4 *Extra Machine Risers
1 *Data Cable
1 *Air Pump
2 *Goggles
1 *Diode Laser Lens Repair Kit
1 *Tool Set
1 *Accessories Package
1 *Antenna Pack
1 *Screw Kit
1 *Aluminium Plate
2 *Basswood Board
2 *Keys
1 *IR20 Laser Module (Laser Head+Power Supply Box+Fiber Cable)
1 *IR20 Laser Control Cable
1 *User Manual
