Main Features:

1. 20W Fiber Laser
The 20W infrared fiber laser with a 1064nm wavelength uses fiber transmission for improved energy efficiency and reduced power loss during transmission.

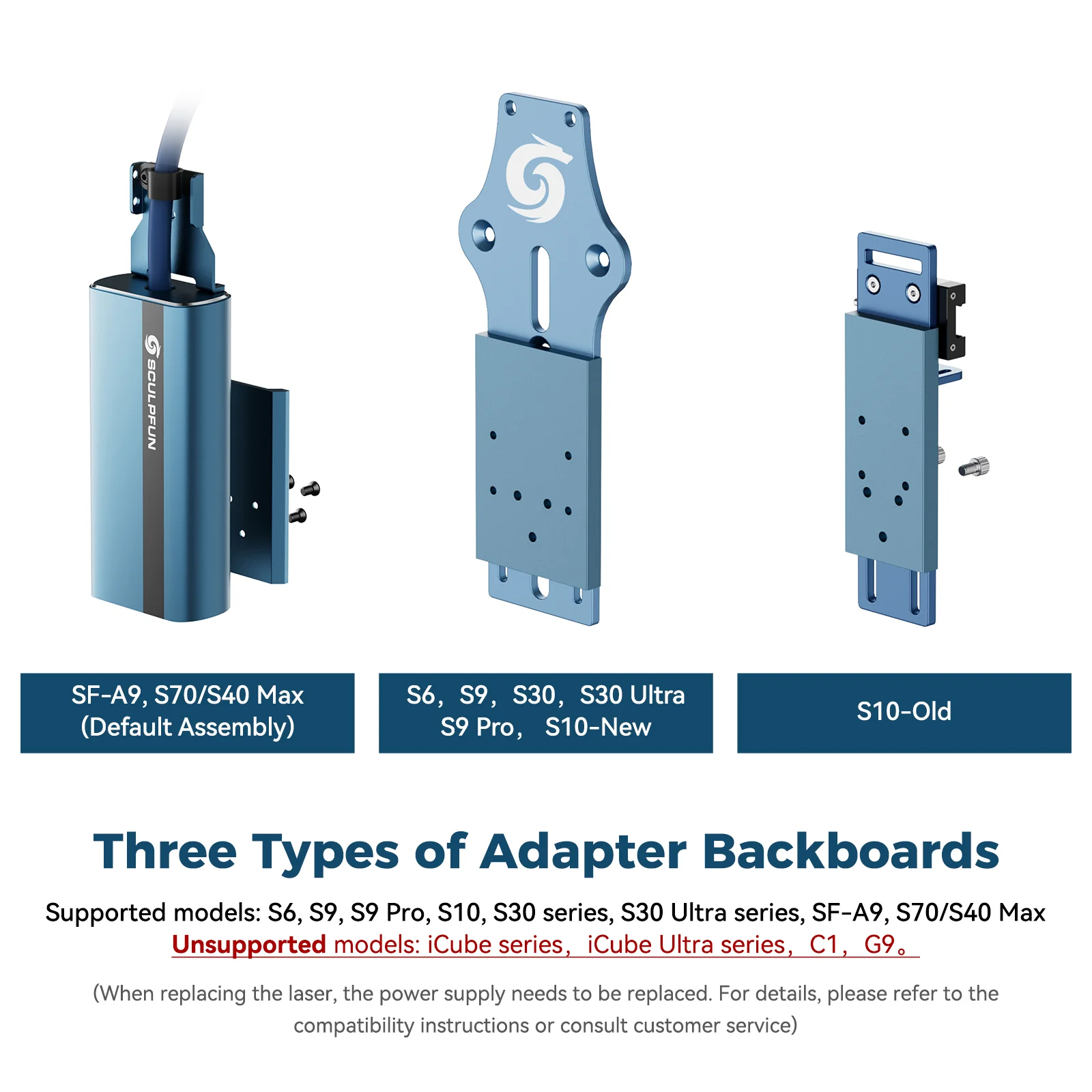

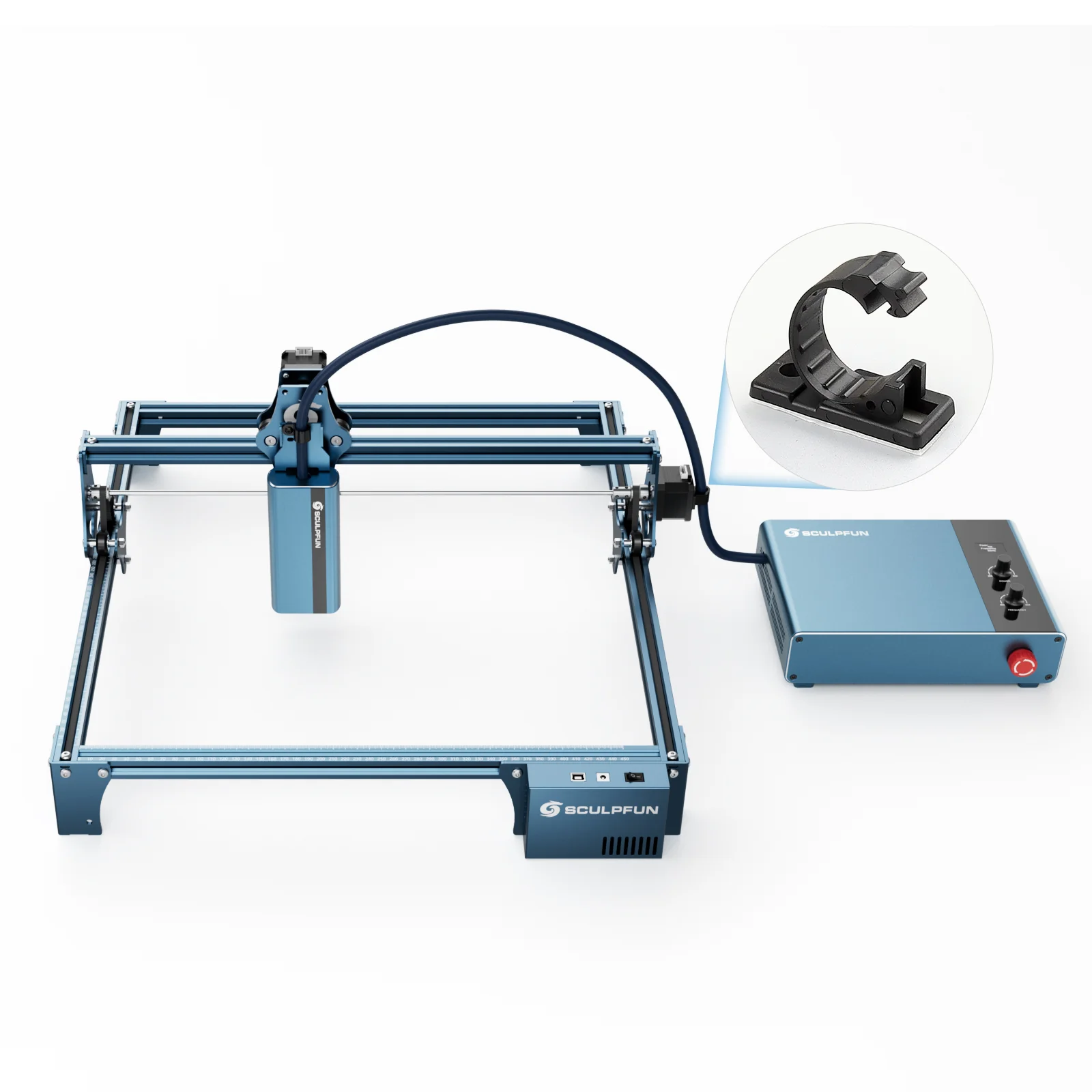

2. High Adaptability
Equipped with a 2-meter fiber transmission cable and some mounting backplates, this laser module is compatible with nearly all SCULPFUN machine models, including SF-A9, S6, S9, S30, S30 Ultra, S10, S70 Max, and S40 Max.

3. Multi-Material Compatibility
The infrared laser is ideal for engraving on a wide range of metals, including gold, silver, platinum, copper, aluminum, zinc, iron, stainless steel, metal oxides, and alloys, as well as on plastics and dark acrylic. It’s perfect for creating unique metal gifts and can also be used for rust removal on metal surfaces.

4. High Precision
SCULPFUN IR20 laser module features an ultra-fine 0.05mm laser spot, allowing for detailed engraving on various materials and ensuring high-definition results.

5. Safety Protection
This IR20 laser module is designed with a rocker switch, emergency stop switch, and fuse, prioritizing your safety.

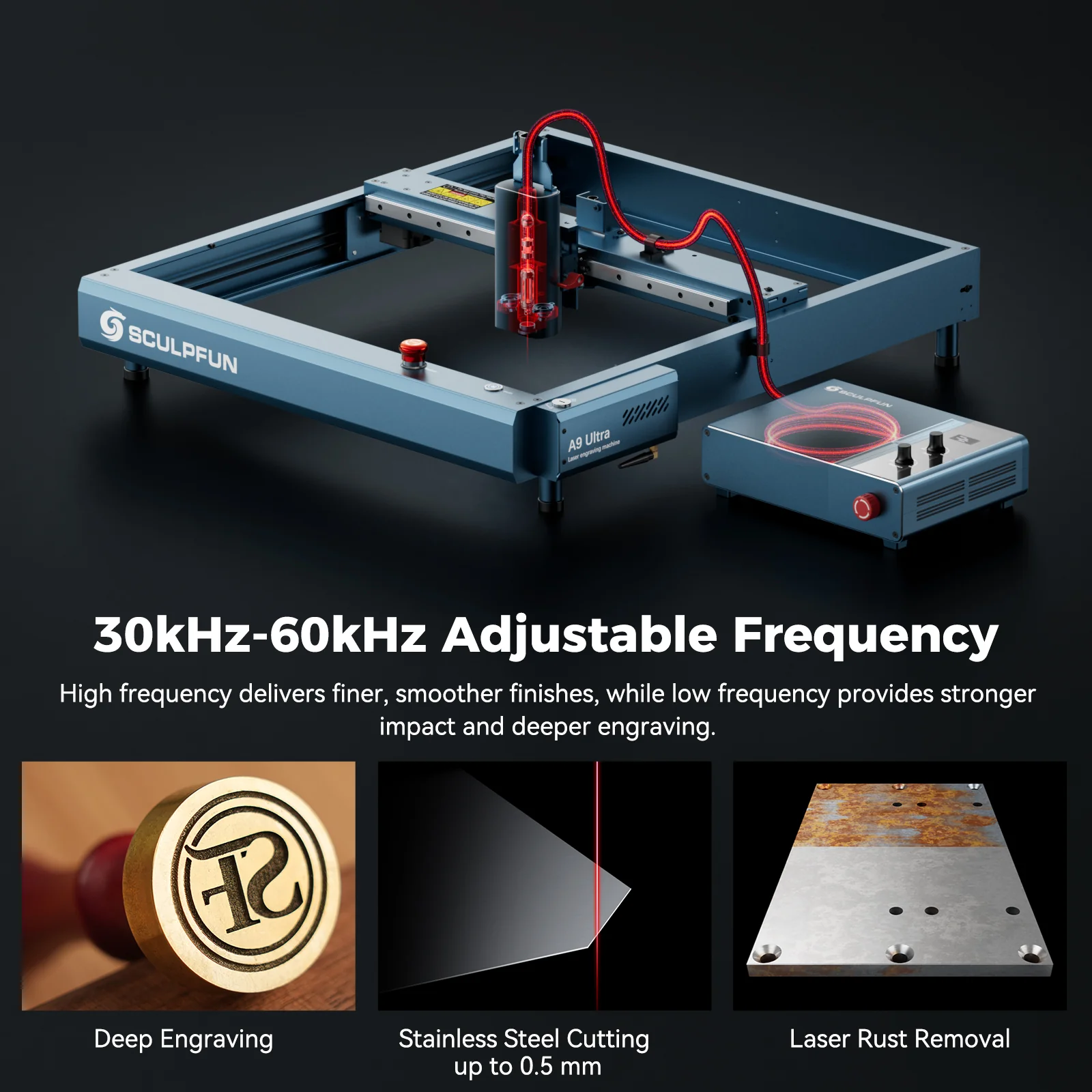

6. Visual Adjustment Output
It is equipped with adjustment knobs that can adjust the output power and frequency of the laser in real time. A built-in digital display screen synchronously shows current power and frequency settings, making operation clear and intuitive.

NOTE:
This product is classified as a Class IV laser device. It emits high-power invisible laser radiation. Do not look directly at the beam. Always wear laser safety goggles during operation.
This product uses a fiber cable for output. The fiber cable is very fragile and cannot be repaired. Do not crush or bend the fiber cable, and ensure the bending radius is no less than 15 cm.

Product Name: SCULPFUN IR20 Fiber Laser Module Kit
Model: IR20
Product Dimensions: Power Supply: 250×185×60mm Laser Module: 143×66×36mm
Laser Power: 20W Infrared Fiber Laser
Laser Spot Size: 0.05mm
Operating Voltage: 85V-260V AC

Packaging Weight: Approx. 4.4 KG
Packing Size: 615×280×125mm
Outer Carton Dimensions: 615×280×375mm
Carton Quantity: 3 PCS

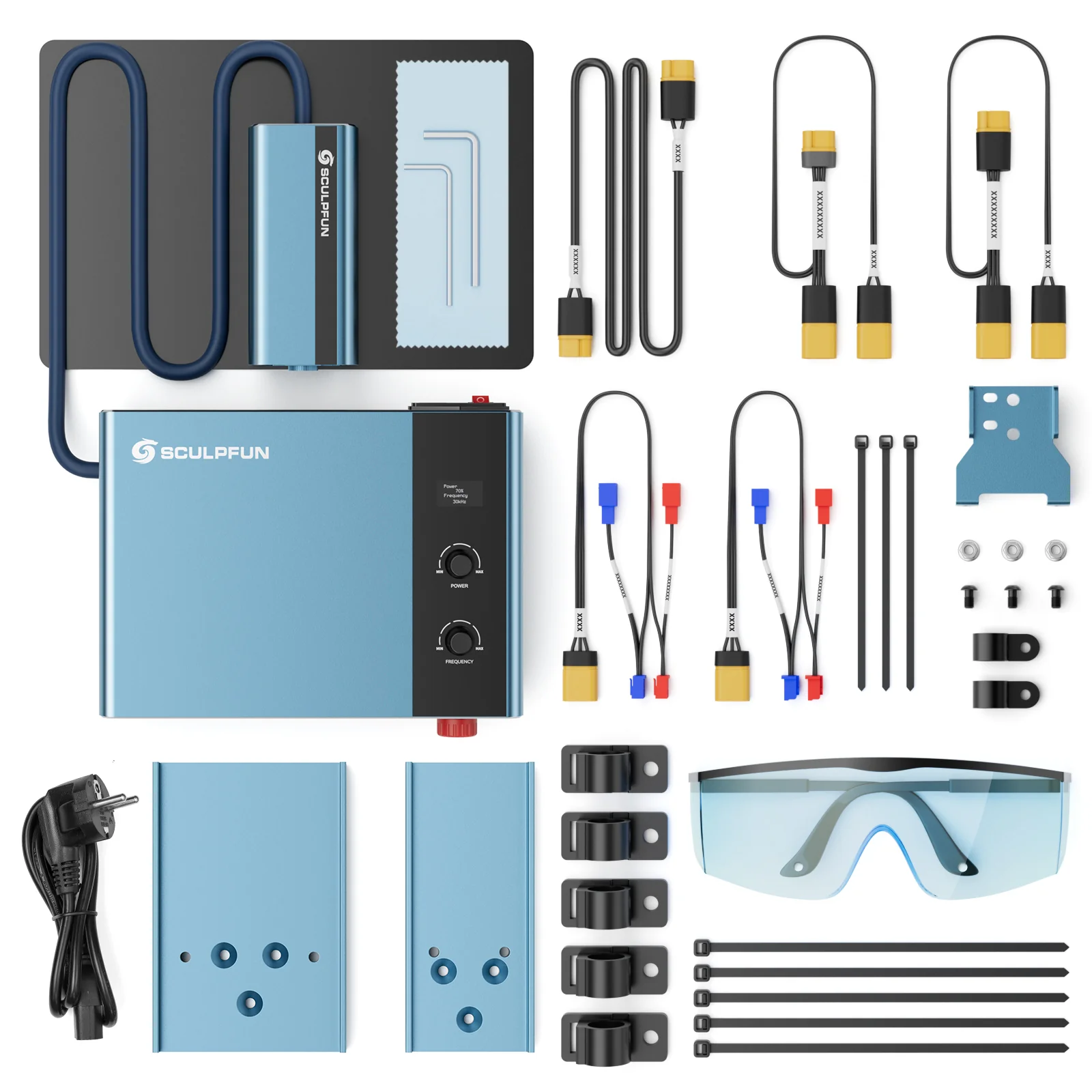

Packing List:
1 *IR20 Laser Module
1 *IR20 Power Supply Box
1 *Power Cable
3 *Mounting Backplate
5 *Splitter Cable
1 *Aluminum Plate
1 *Safety Glasses
1 *Accessory Kit
1 *User Manual
